SWSF-590 Automatic Flow Wrapping Packaging Machine

Group Horizontal Flow Packing Machine（normal type)
Min. Order 1 piece
Terms of Payment T/T
Update Time 2020-09-01
Item specifics
颜色蓝色灰色银色
packing speed30-120packs per min
control systemservo motor
OEM servicesavailable
  • Description
  • Product review
Product Details

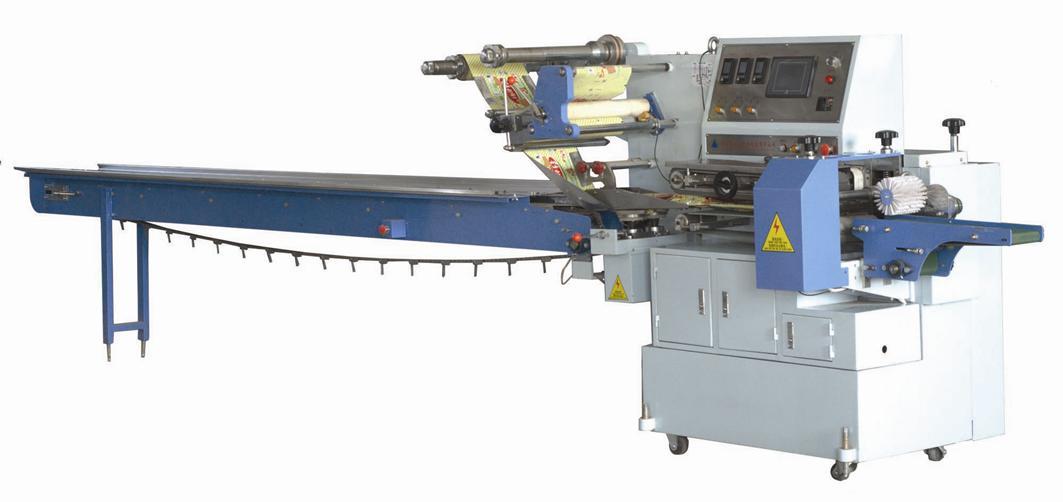

Flow Wrapping Packing Machine picture

What Is Horizontal Flow Wrapping Packing Machine?

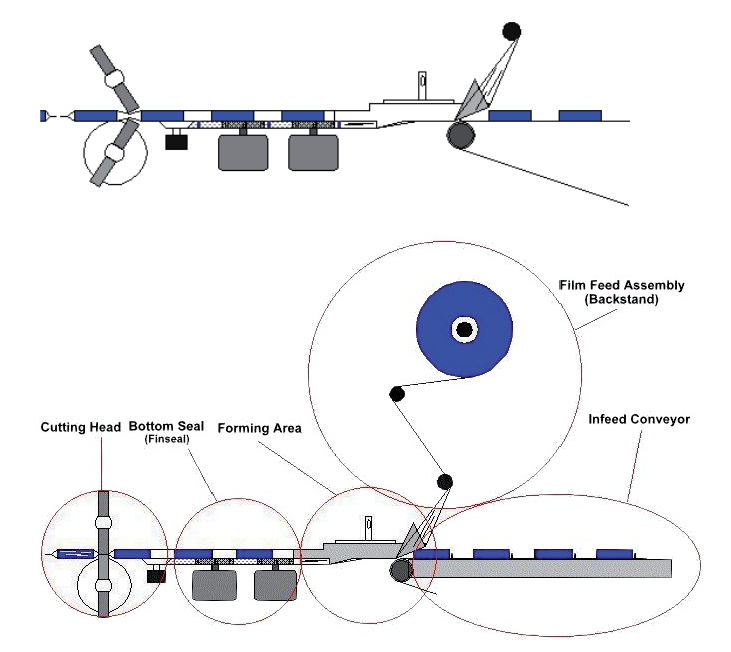

The drawing below shows a horizontal flow wrapping packing machine
The flow wrapping packing machine packages product by wrapping it in film. The flow wrapping packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Application of Horizontal Flow Wrapping Packaging Machine：
It is suitable for package of washing foam, Popsicle, instant noodles, ice cream bar, moon cakes, biscuits, bread, meat food, frozen food, toilet soap, medicine tablets, plastic transfusion, incense coil, industrial products, plastic forks and knives etc.
Constituent Parts of Horizontal Flow Wrapping Packing Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.

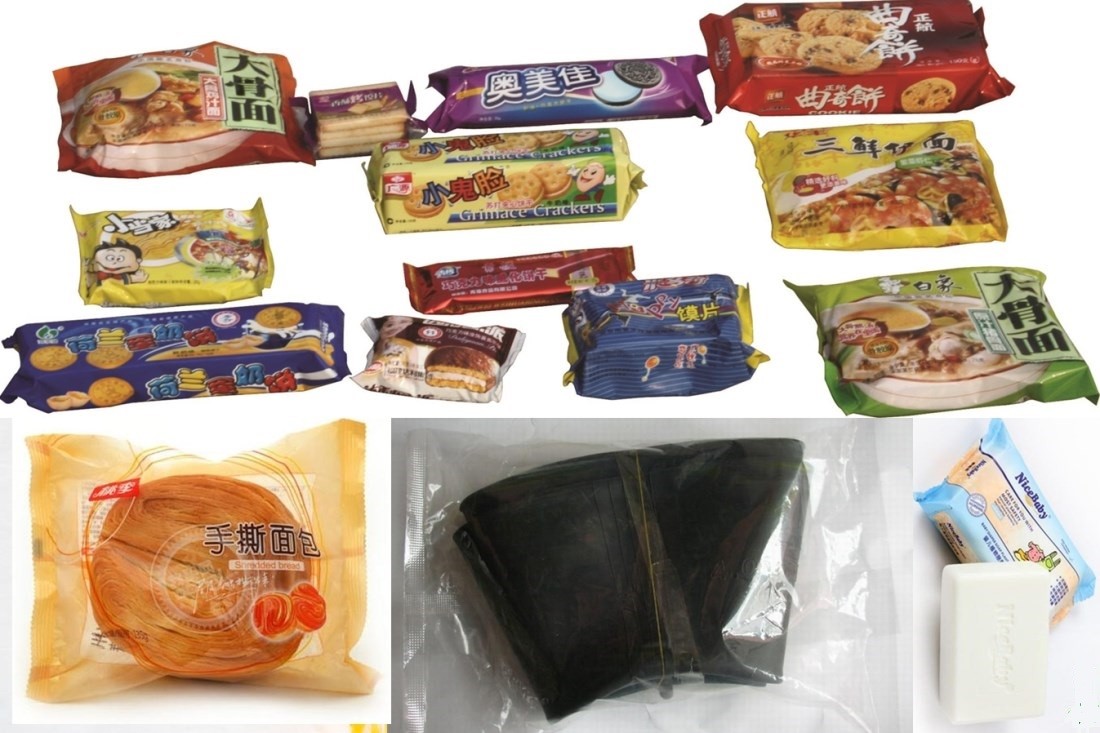

Packing Samples of Horizontal Flow Wrapping Packing Machine:

Max film width

590mm

Packing Sizes

L:50~600mm， W:20~200mm H:5~110mm

Packing Speed

30~220bags/min

Packing material

Poly film, Aluminum foil poly film

Power Consumption

4.3KW Single Phase 220V

Machine sizes

LxWxH:5700×1050mm×1700mm

Machine weight

About 1000kg
Features Of Flow Wrapping Packing Machine


◆ Adopting double servo motor, PLC and touch-screen that greatly improved the control accuracy, range of speed regulation, operational reliability and intelligent level of machine.

◆ Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.

◆ Packing parameter with many products could be set, the relevant data could be drawing out from memory and the machine will be operate according to these data.

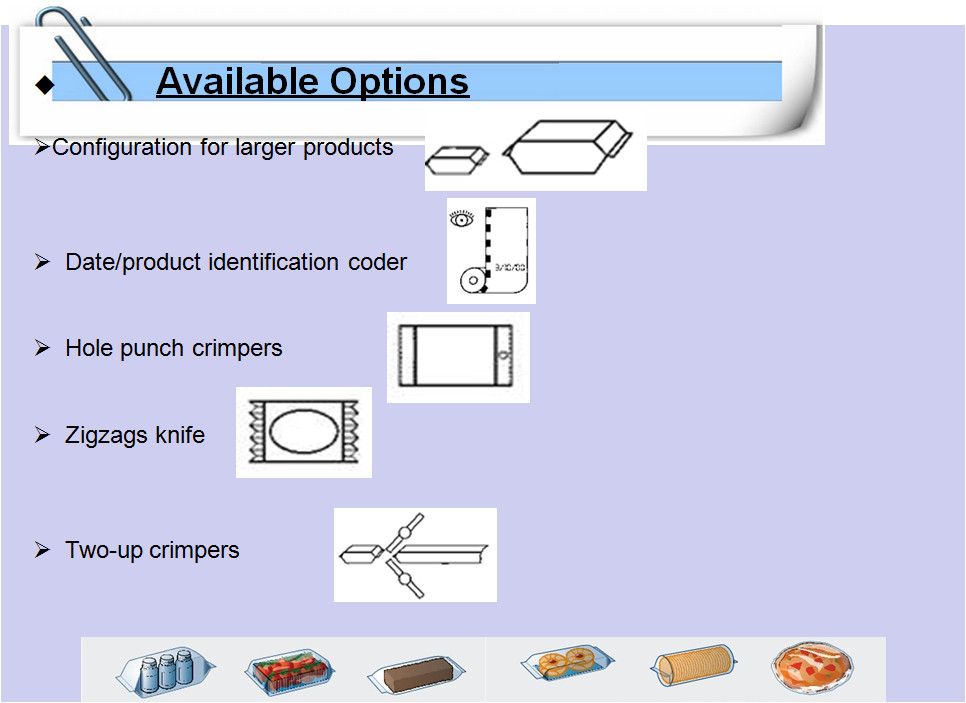

Auxiliary equipment

1、Date code printer

2、Automatic feeder

3、Automatic grouping equipment

4、Euro slot or round hole can be made

Why choose us

1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
