SWW-240-6 Mosquito Mat Liquid Dosing and Automatic Sealing Packing Machine

Group Mosquito Mat Liquid Dosing and Automatic Packing Machine
Min. Order 1 piece
Terms of Payment T/T
Update Time 2020-08-31
Item specifics
colorsliver and blue
OEM serviveAvailable
Customerized productsavailable
  • Description
  • Product review
Product Details
mosquito mats packing machine, mosquito repellent mat packing machine, mosquito mats killing-mat packing machine, mosquito repellent mat packaging machine,mosquito repellent mat packaging machinery, mosquito repellent mat packing machinery,anti-mosquito pad Packaging machine, anti-mosquito pad  packaging machinery, anti-mosquito pad packing machinery, anti-mosquito pad  package machine


The chemical liquid injection and automatic packing for mosquito mat. It is superior quality and with high speed. The Packaging machine absorbs other machine advantages and get rid of their shortages. Packaging machine is with high speed and accurate liquid injection.

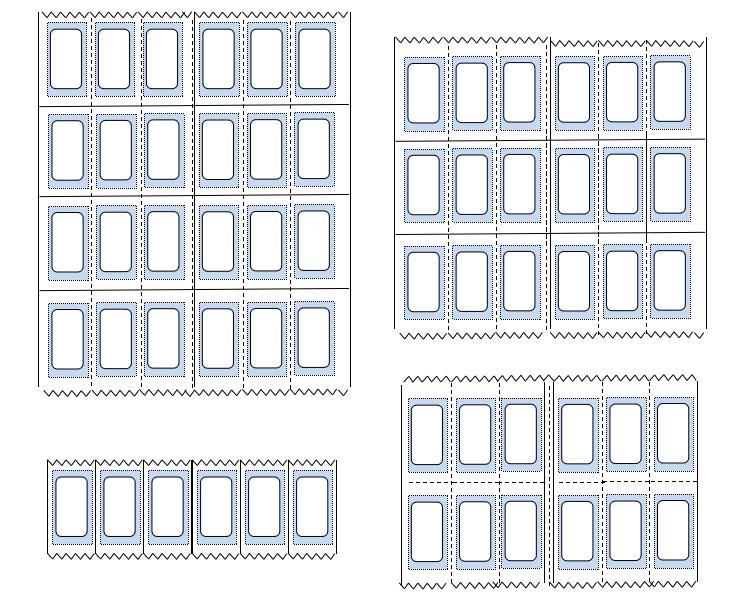

Rows of Cutting Can Be Set As Requested As Below and Also can be set accordding to buyer's request

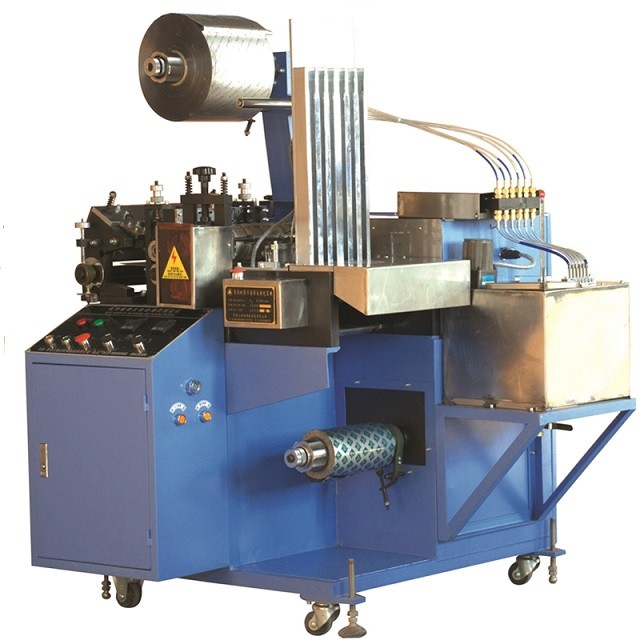

Mosquito Mat Liquid Dosing and Automatic Packing Machine

Packing Speed

About 480-630mats/min (variable)

Inject Volumn

About 30mg~300mg(adjustable)

Mat Size

About 35x22x2.8(±0.1mm)

Packing material

Laminated heat sealing Aluminium foil(WxL)235~240x500~1000mm

Liquid Container

30Liters with agitator and heating device

power consumption


Cutting method

straight cutting and perforation



Cubic meters


Working Process of Mosquito Mat Liquid Dosing and Automatic Packing Machine

1. Blank mats (35x22x2.8mm) are stacked vertically by hand and automatically feed blank mats to following section.

2. The blank mat is injected with a fixed amount of Liquid.

3. The impregnated mats are automatically wrapped and sealed by laminated film.

4. The laminated film is cut into sets, each set contains 6/9/12/15/18/24/30 or more pieces of mats.

5. The detector function automatically stops the machine if a mat is wrapped without being injected, or it is not wrapped (selective).

Features of Mosquito Mat Liquid Dosing and Automatic Packing Machine

(1) The way of liquid injection is mechanical way and the precision is high which deviation could be controlled within ±5mg. Six pumps separately adjust the dose (30mg-300mg). The pumps adopt the metal material, of stable performance and high life.

(2) The qualification rates of the products are high, and can be controlled above 99.7%.

(3) The cut model is advanced and scientific, and adopted the rotary end cutting with long life, low noise and pinpoint accuracy instead of the traditional pressing cutting way.

(4) With high producing efficiency-could work stably at 480~630 tablets/minute.

(5) The design of the circuit is simple and easy to maintain.

(6) Cutting can be set to 1 to 100 rows per time



Why choose us

1. We are probably the only producer for the mosquito mat packing machine in China, if other company sell this machine, they should buy from us then resell it.

2.We are manufacture but not trade company.

 3. We have professional staff who can advise you the suitable packing machine for your specific need.

4. Our professional workers will make the perfect packing machine for you.
5. Well trained and experienced staff will answer your inquiry timely.
6. We provide competitive price and fine quality packing machines.

Our Services

We provide after-sale services both on-site service and email/phone services, the email/phone service will be free of charge.
if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.

We also provide related spare parts of our packing machine.
We also provide customized products according to customer's request.
