SWSL590 SWD2000 Automatic Heat Shrink Packaging Machine(Vertical End Sealer)

Group Automatic Shrink Packing Machine(rotary type)
Min. Order 1 piece
Terms of Payment T/T
Update Time 2020-09-01
Item specifics
automatic gradefully automatic
brand nameSanweihe
packing typeshrink packaging
  • Description
  • Product review
Product Details

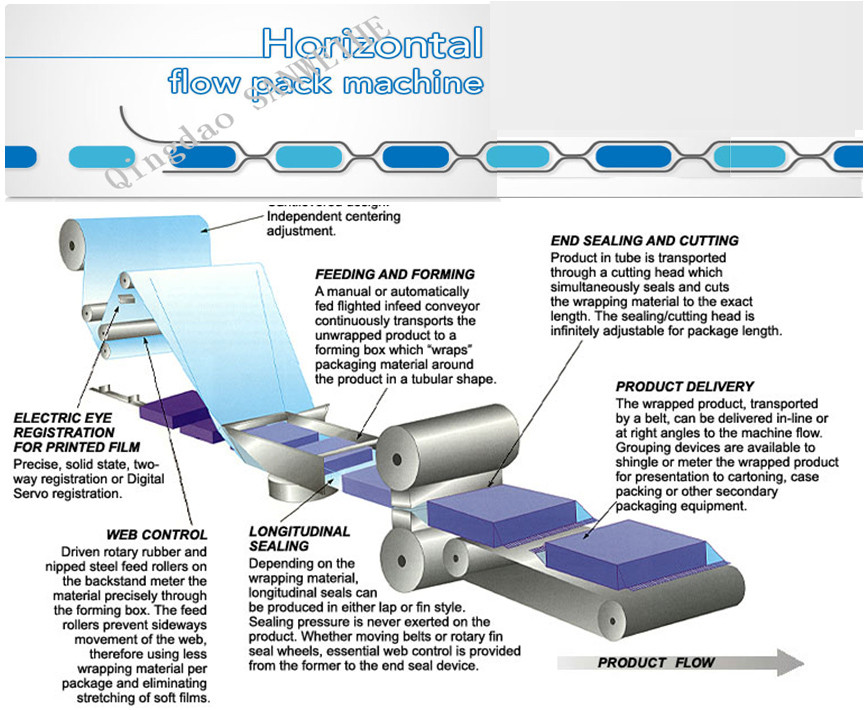

Packing Process:Product is placed on the in-feed conveyor. As the in-feed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a fin-seal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the end-seals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the shrink tunnel,the film will be shrinked tightly around the product, At this time the whole shrink packing process is done.

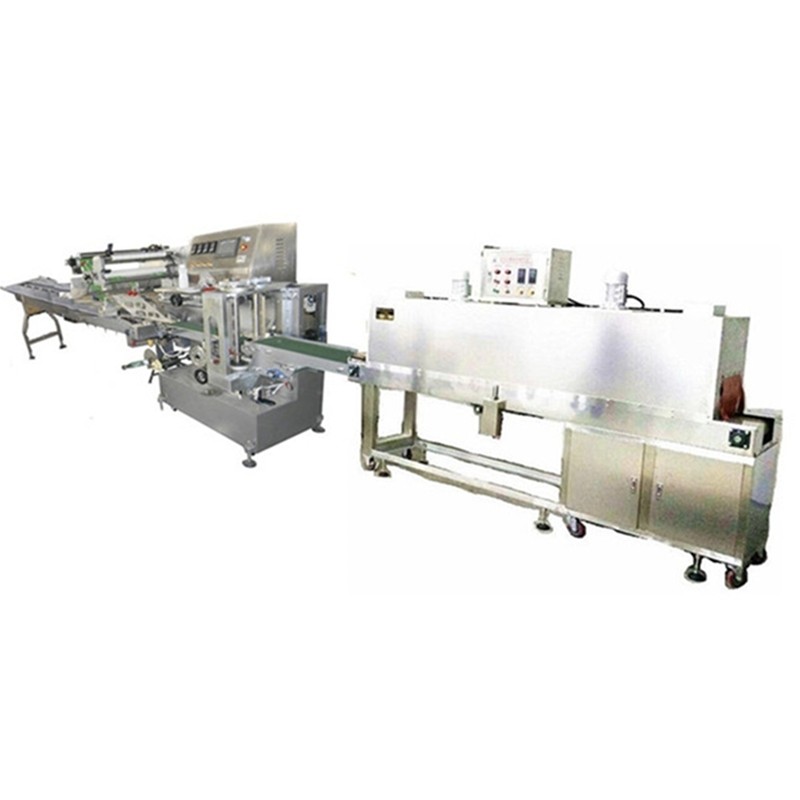

shrink packing machine picture
Application Of Shrink Automatic Packaging Machine

Bottled milk, bottled alcohol, canned Aerosol, canned soup, industrial products, plastic barrel etc shrink packaging.

The machine can connect with the production line directly if needed, the bottles or cans stay stand during packing and no need to lay down the bottles or cans first, the shrink packing appearance will be more beautiful.

Why Do Your Products Needs Be Shrink Packed?
1, Beautiful appearance, Film is very close to the goods, suitable for a variety of different shapes of goods packaging;
2, Good protection, it can have better protection for the inner packed product;
3, Good cleaning, especially suitable for precision instruments, high-precision electronic components packaging;
4. Reduce packaging costs.after replacing the carton with heat shrinkage, the cost can be reduced by at least 30%
5, Anti-theft. A variety of food can be wrapped together with a large shrink film to avoid loss;
6,The stability is good, the goods will not fall in the packaging film;
7, Transparency is good, customers can directly see the product content.Give the product a good opportunity to display itself.
Packing Samples Of Shrink Automatic Packaging Machine
Of Shrink Automatic Packaging Machine

Max film width


Packing Sizes

70~600mm, 20~200mm, 5~110mm

Packing Speed


Packing material

Poly film, Aluminum foil poly film

Power Consumption

4.3KW  single phase 220V

Size of machine



About 1500kg

Auxiliary Equipment Of Shrink Automatic Packaging Machine

Date code printer

Automatic bottle arranging machine

Automatic feeder

Automatic grouping equipment

Features Of Shrink Automatic Packaging Machine

Adopting double servo motor, PLC and touch-screen that greatly improved the control accuracy, range of speed regulation, operational reliability and intelligent level of machine.

Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.

Packing parameter with many products could be set, Drawing out the relevant data from memory and the machine will be operate according to these data.

The bottles or cans stay stand during packing and no need to lay down first, the shrink packing appearance will be more beautiful.

Why choose us

1. We are manufacture but not trade company.
2. We have professional staff who can advise you the suitable packing machine for your specific need.
3. Our professional workers will make the perfect packing machine for you.
4. Well trained and experienced staff will answer your inquiry timely.
5. We provide competitive price and fine quality packing machines.

Our Services

We provide after-sale services both on-site service and email/phone services, the email/phone service will be free of charge.
if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.

We also provide related spare parts of our packing machine.
We also provide customized products according to customer's request.
