Wider film Automatic Horizontal Form-Fill-Seal Packing Machine

Group Horizontal Flow Packing Machine（film-feed-from-bottom type)
Min. Order 1 piece
Terms of Payment T/T
Update Time 2020-09-02
Item specifics
colorsilver and blue
speed20-60packs/min
automatic gradesemi-automatic
control typeservo motors control
  • Description
  • Product review
Product Details
What is Horizontal Form-fill-seal Packing Machine?

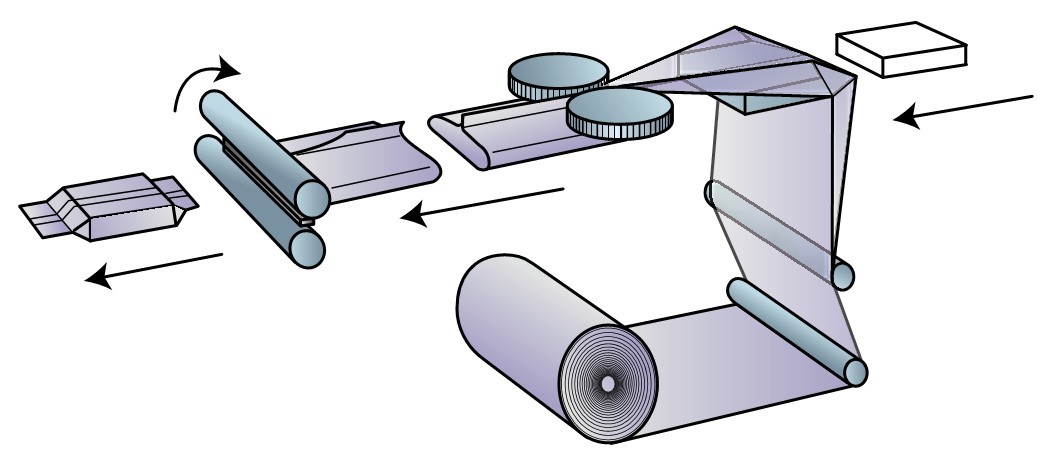

The drawing below shows a horizontal form-fill-seal packing machine:
The horizontal form-fill-seal packing machine packages product by wrapping it in film. The horizontal form-fill-seal packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Application of Horizontal Form-fill-seal Packing Machine

Bread, chocolate en-robed cheese bar, soaps, Popsicle, cookies, waffle, trowel, cotton wool.

Group packaging:

Waffles, meat chops, bakeries, soaps, sponges, biscuits with tray etc.

Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

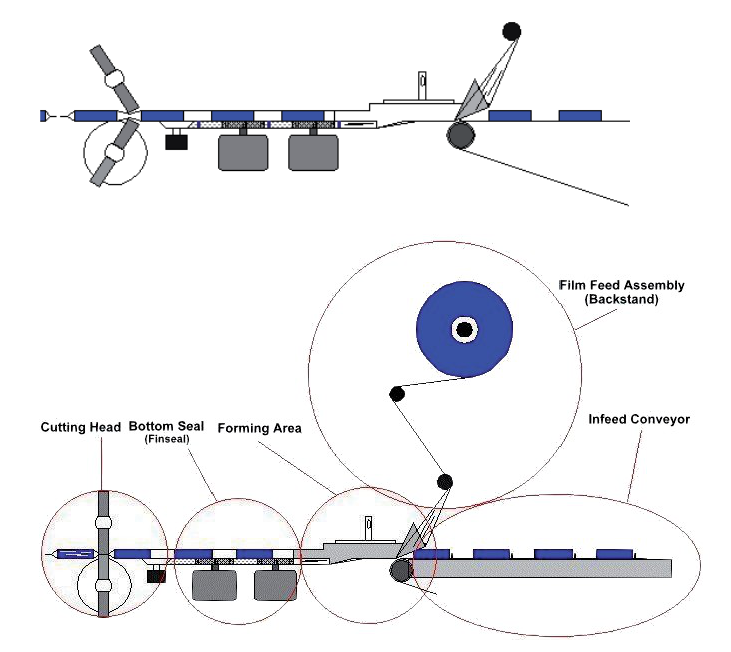

Constituent Parts of Horizontal Form-fill-seal Packing Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Wrapping Packing Process of Horizontal Form-fill-seal Packing Machine:

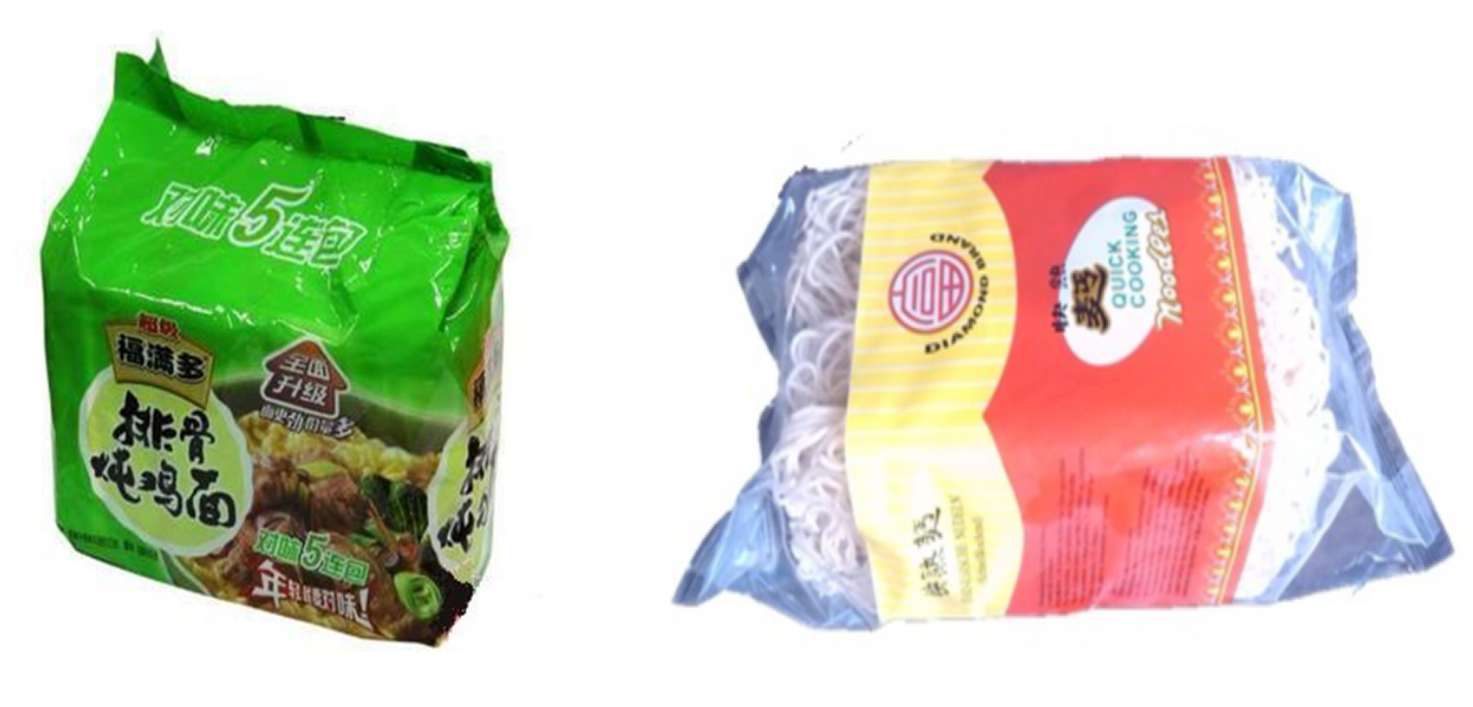

Packing Samples of Horizontal Form-fill-seal Packing Machine:
Features of Horizontal Form-fill-seal Packing Machine:
◆ Adopting the PLC control for a more stable and reliable system with less trouble.
◆ Digital display with packing length, speed and temperature adjustable separately, easy and accurate for use.
◆ Two-way tracking for accurate sealing and cutting Position
◆ The main technical parameter for film feeding from below flow automatic packing machine
Parameters of Horizontal Form-fill-seal Packing Machine:

Max film width

800mm

Packing Sizes

L:50~600mm， W:20~200mm H:5~110mm

Packing Speed

30~80bags/min

Packing material

Poly film, Aluminum foil poly film

Power Consumption

4.7KW Single Phase 220V

Machine sizes

LxWxH:5700×1050mm×1700mm

Machine weight

About 1000KGS

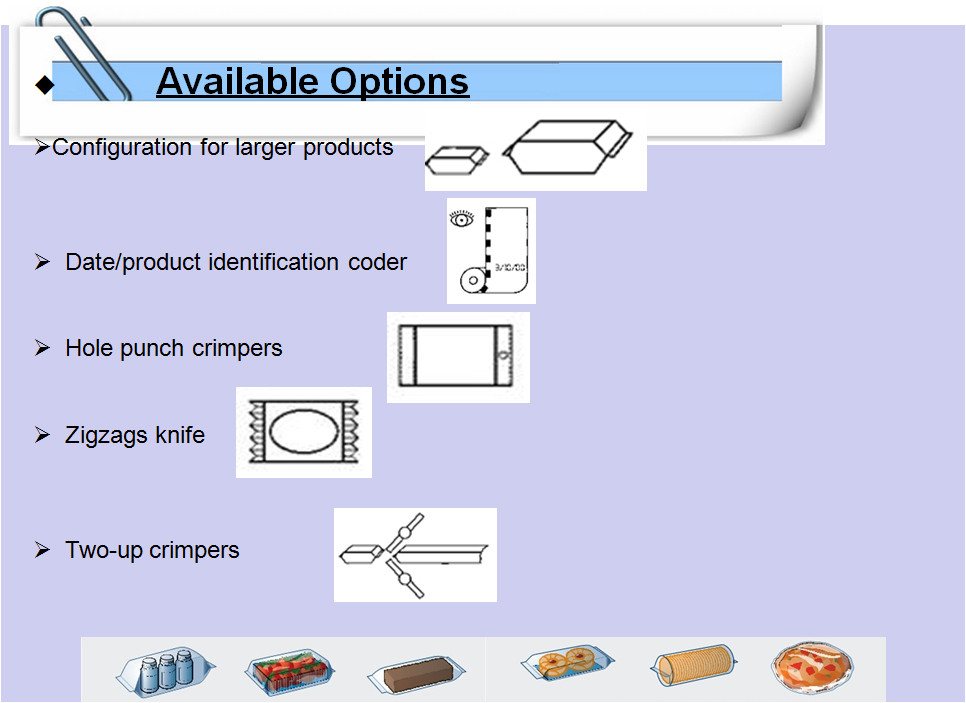

Auxiliary equipment

1.Date code printer

2.Automatic feeder

3.Euro slod or can be made


Why choose us

1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products
