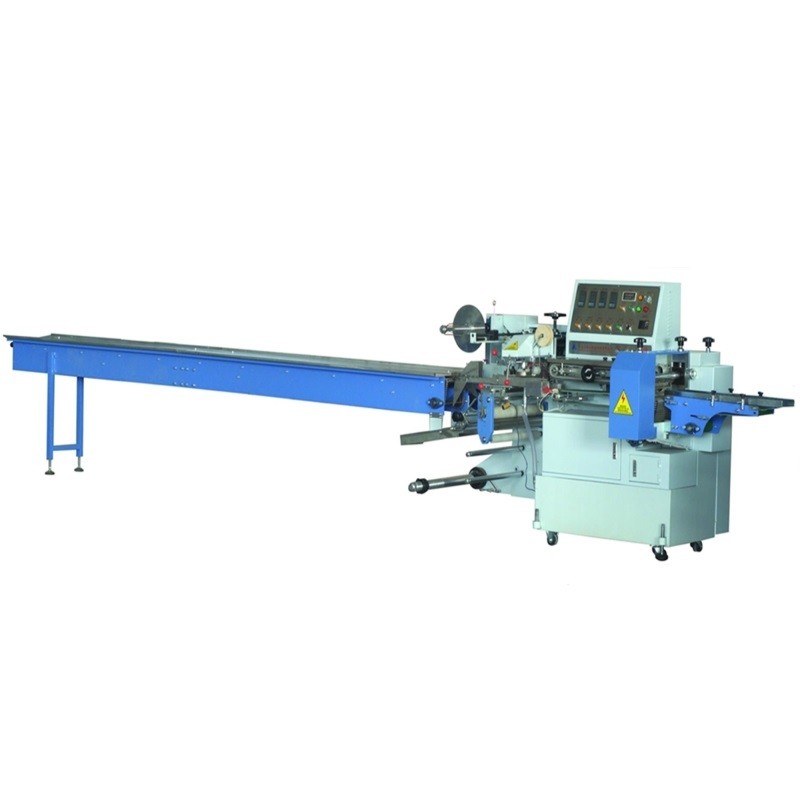

SWF-450 Automatic Flow Wrapping Packaging Machine

Group Horizontal Flow Packing Machine(film-feed-from-bottom type)
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2019-07-23
  • Description
  • Product review
Product Details
What Is Horizontal Flow Wrapper?

The flow wrapper packages product by wrapping it in film.The flow wrapper machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.

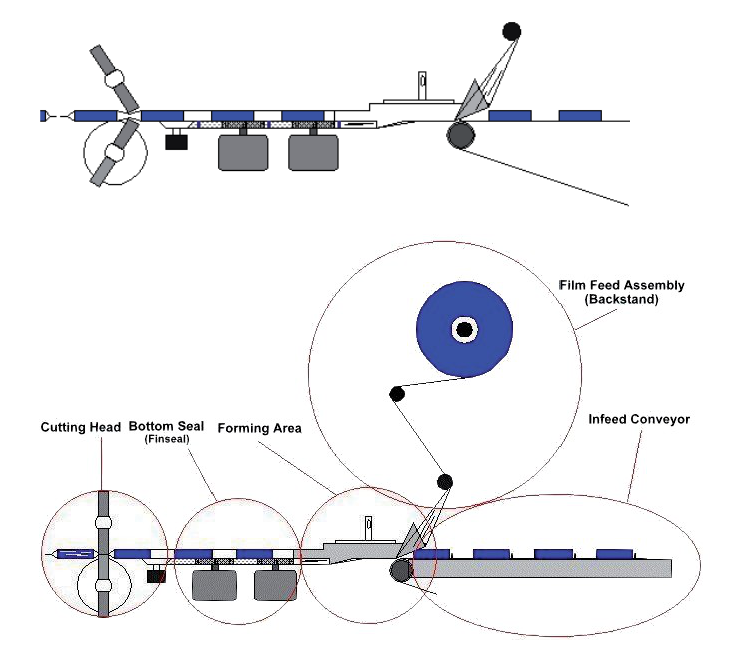

The drawing below shows a horizontal flow wrapper in motion
Constituent Parts of Horizontal Flow Wrapping Packaging Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Application and Packing Samples Of Horizontal Flow Wrapper

Bread, chocolate en-robed cheese bar, soaps, Popsicle, cookies, waffle, trowel, cotton wool.

Group packaging:

Waffles, meat chops, bakeries, soaps, sponges, biscuits with tray etc.

Non standard products (customization):

Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

Horizontal Flow Wrapper:

Max film width

450mm

Packing Sizes

L:50~600mm, W:20~200mm H:5~110mm

Packing Speed

30~220bags/min

Packing material

Poly film, Aluminum foil poly film

Power Consumption

4.7KW Single Phase 220V

Machine sizes

LxWxH:5700×1050mm×1700mm

Machine weight

about 1000kg

Auxiliary equipment

1.Date code printer

2.Automatic feeder

Features of Horizontal Flow Wrapper:

1.Adopting the PLC control for a more stable and reliable system with less trouble.

2.Digital display with packing length, speed and temperature adjustable separately, easy and accurate for use.

3.Two-way tracking for accurate sealing and cutting Position

4.The main technical parameter for film feeding from below flow automatic packing machine
