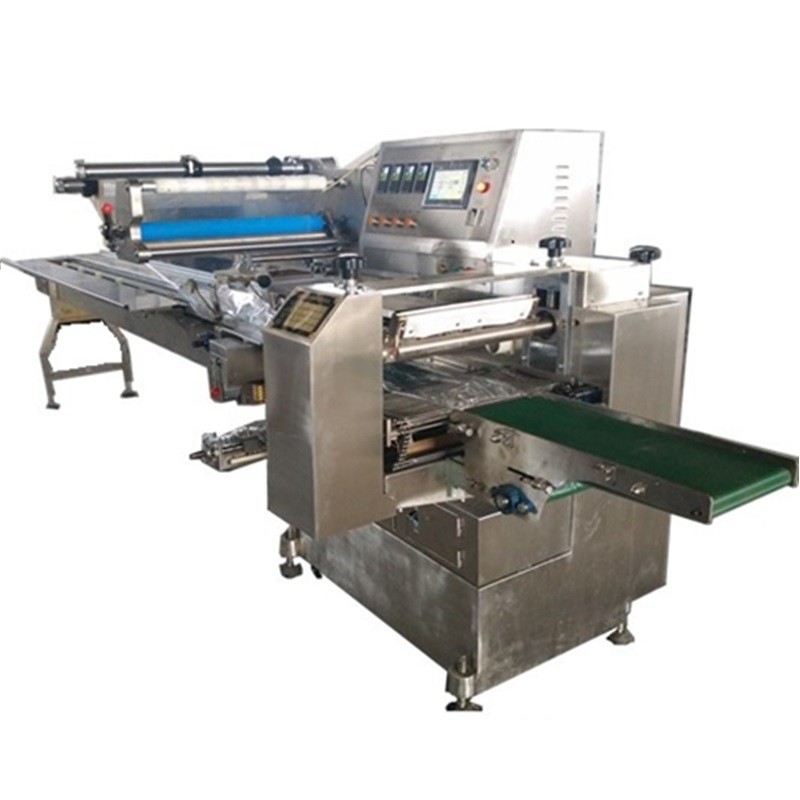

SWC-800 Wider Film Automatic Flow Wrapper

Group Horizontal Flow Packing Machine(normal type)
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2020-09-02
Item specifics
colorsilver or blue
materialcarbon steel or stainless steel
  • Description
  • Product review
Product Details
What is horizontal flow wrapping packing machinery?

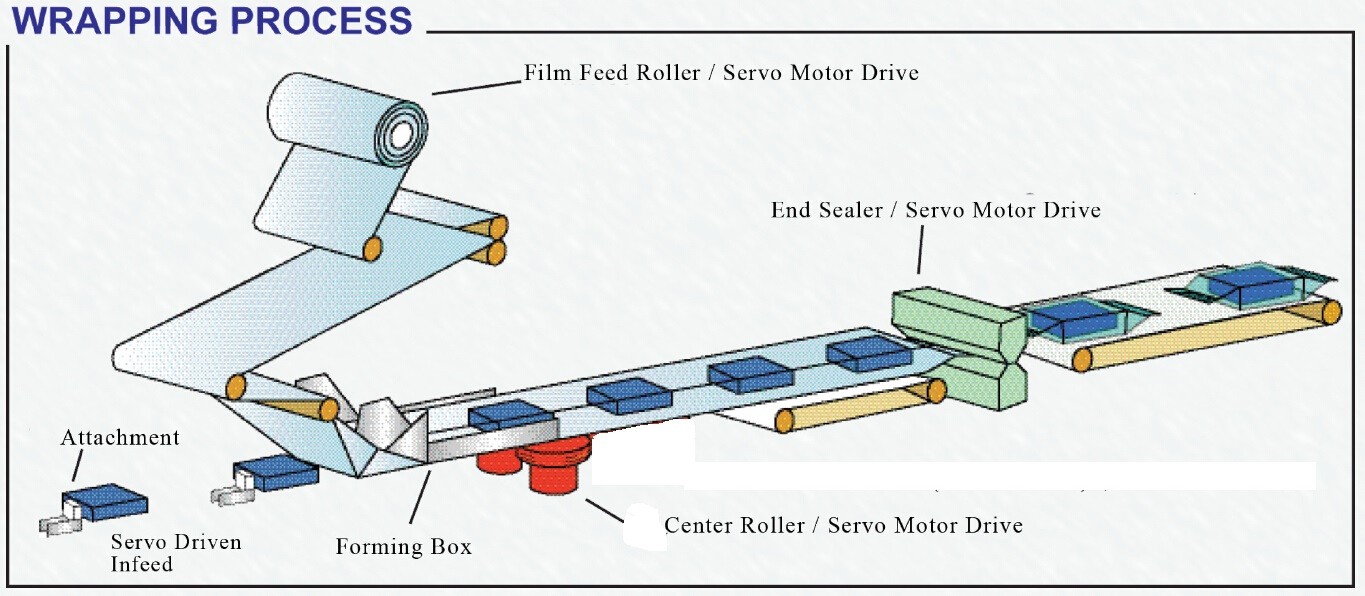

The packing machine packages product by wrapping it in film.The Form-fill-seal machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.

washing foam packaging machine, Popsicle packing machine, instant noodles packaging machinery, ice cream bar packing machine, moon cakes packing machine, biscuits packing machinery, bread packaging machinery, frozen food packing machine, toilet soap flow pack machine,  plastic transfusion flow pack machine, incense coil flow wrapping machinery, industrial products packing machine

Application of Horizontal Flow Wrapper:

The packing machinery is used for the packaging of bigger and wider products and collective and group products, such as 5 bags of instant noodles packed in one big pack,wider film is used on this wrapping packing machinery
Constituent Parts of Horizontal flow wrapping machine:
The packing machinery has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Packing Samples of Horizontal washing foam flow wrapper:

Style Number




Product Length


 Product Width


 Product Height


 Max. Film Width


Total Power


Machine Weight


Machine Sizes

(L) 8000mm × (W) 1400mm × (H) 1680mm

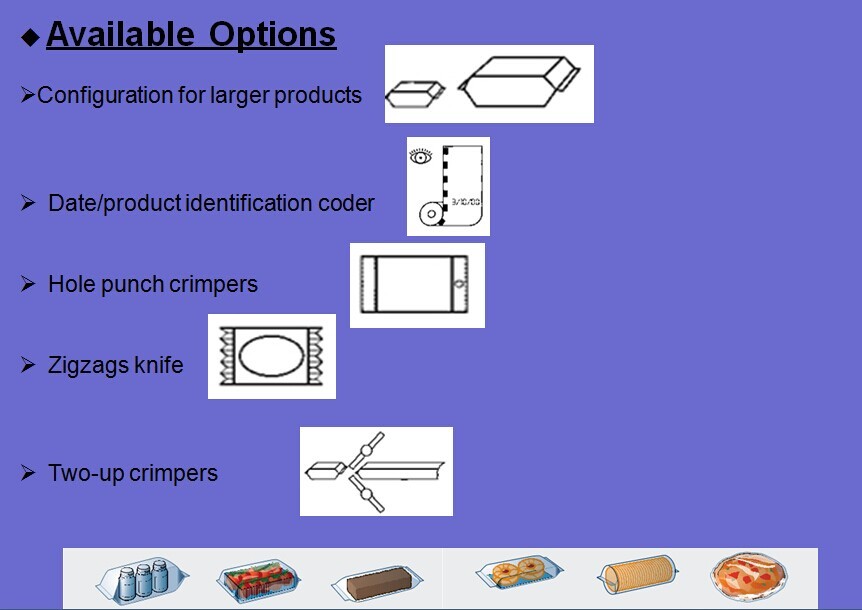

Auxiliary equipment

1.Date code printer

2.Automatic feeder

Features of Horizontal Flow Wrapper:

(1) Easy operate, high efficiency

(2) Automatic Color marks tracking

(3) PLC and servo driving controller,

(4) simple structure, low failure rate, easy adjustment.
